Self Drilling Screws With Washer:

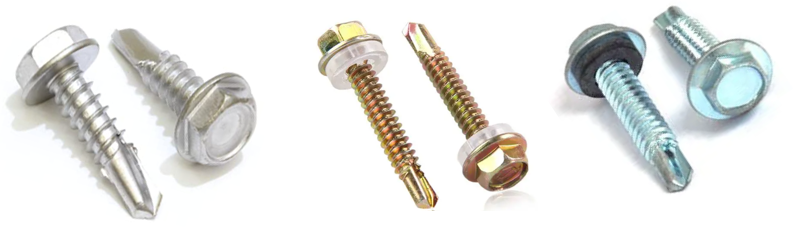

10 x 1" Stainless steel Self Drilling Screws                          Yellow zinc Self Drilling Screws                         Zinc plain Self Drilling Screws

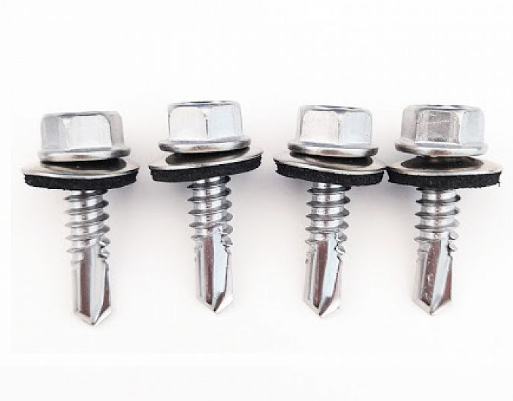

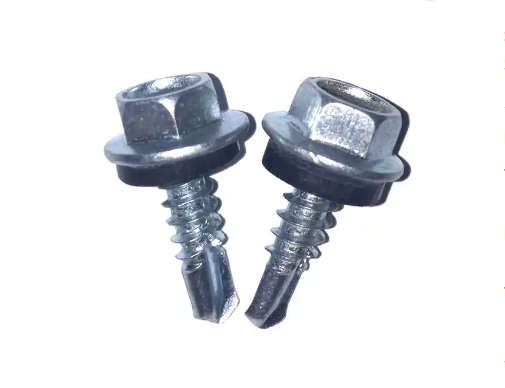

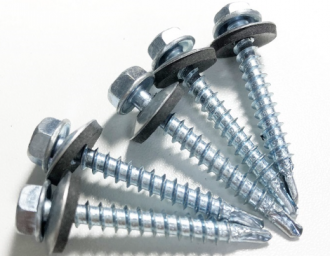

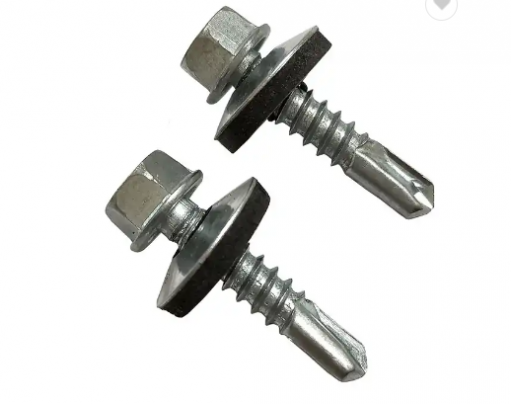

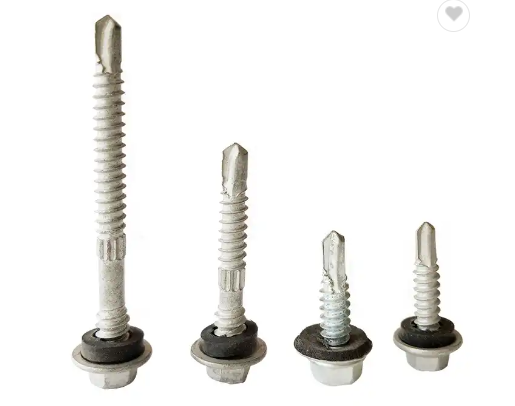

The Self Drilling Screws with PVC/EPDM Washer are commonly used in construction and engineering applications. These hex head self drilling screws with a washer are particularly useful for attaching metal roofing sheets, cladding, and various types of panels to a variety of surfaces. They are suitable for use in both indoor and outdoor settings and can withstand harsh weather conditions.

China self drilling screw with washer has become increasingly popular in recent years due to their high strength, durability, and ease of installation. They are often used in metal building applications, including commercial and industrial buildings, as well as agricultural and residential applications.

Hebei Yunteng Fastener supplier is a leading manufacturer and supplier of self drilling screws with PVC/EPDM washer in China, with a strong reputation for providing high-quality and reliable products. Their self drilling screws with washers have undergone rigorous testing and are designed to provide optimal performance in a wide range of applications, making them a popular choice for contractors and builders across the country.

1. Material selection: The production of Self Drilling Screws with PVC/EPDM washer begins with the selection of high-quality raw materials that meet the required specifications. The screws are typically made from steel or stainless steel, while the PVC/EPDM washer is made from a high-quality PVC/EPDM compound.

2. Heading: The steel or stainless steel wire is fed into heading machines to form the head of the screw. The heading process involves applying pressure to the wire in a die to form the required shape of the head.

3. Threading: Once the heads have been formed, the screws are fed into threading machines where the threads are cut into the shaft of the screw. The threading process involves using a cutting tool to remove material from the screw shaft to form the threaded profile.

4. Pointing: After threading, the screws are pointed at the end to create a sharp tip to facilitate drilling through the material being fastened.

5. Washer production: The PVC/EPDM washer is typically produced using an extrusion process, where the compound is melted and formed into the required shape through a die. The washer is then cut to the required size.

6. Assembly: The final step involves assembling the PVC/EPDM washer onto the screw. This is typically done using automated equipment that aligns the washer and screw shaft and applies pressure to secure the washer onto the screw.

7. Quality control: Throughout the production process, quality control measures are implemented to ensure that the screws meet the required specifications. This involves inspections of the raw materials, in-process inspections, and final inspections of the finished product to ensure that it meets the required standards.
